Activity 1: My Research

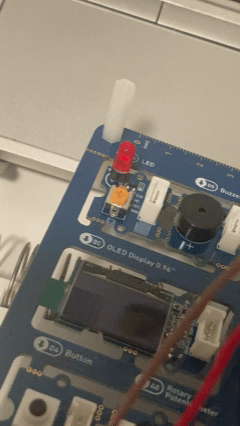

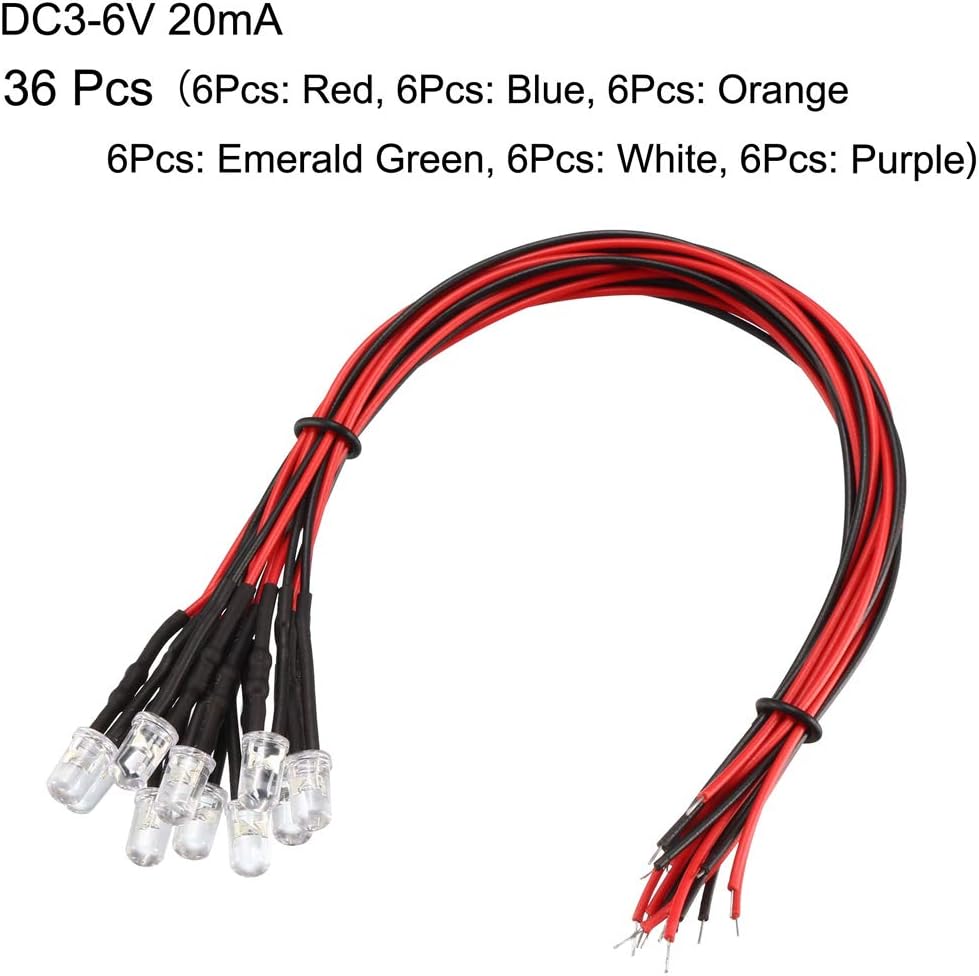

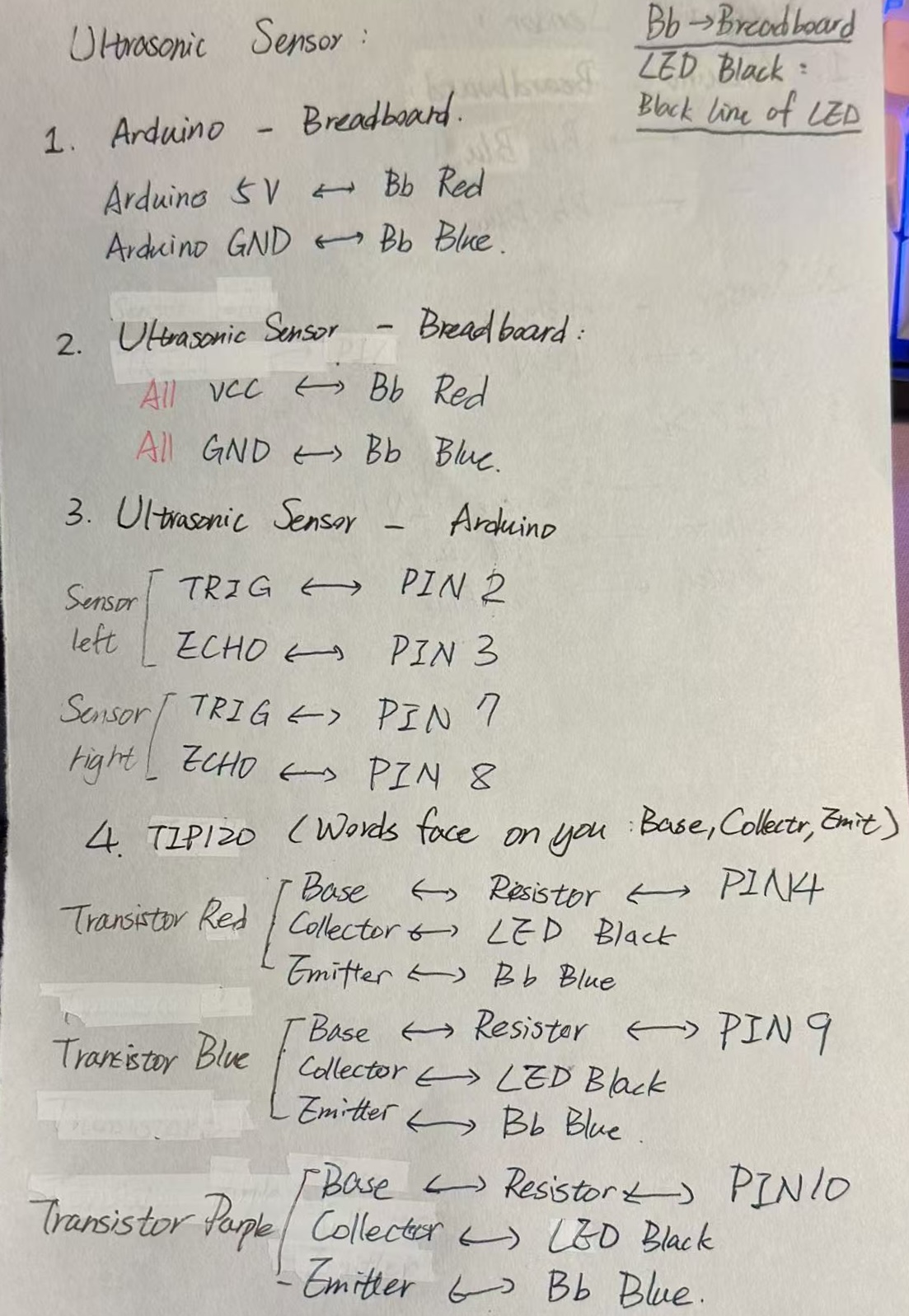

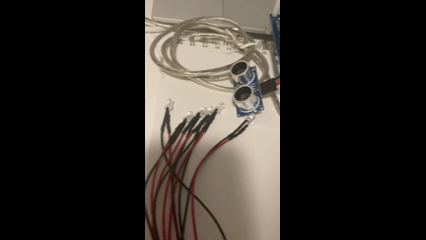

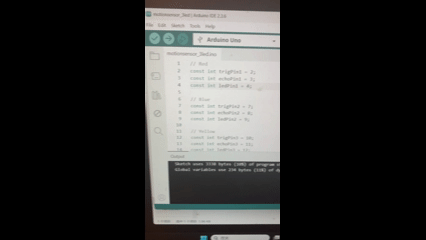

Preperation of LED. Since I need multi-color LED for my project. I chose the LED with entended wires, so that it can reduce my soldering work. The check list of circuit, to avoid missing any parts when I connected the transistor, resistor and LED together. Tested the a group of red LEDs to see if they can light up with the code. I found the poor contact issues. During my testing of LED, I found out the D5 and D6 got highest priority compare to wire, which leaded to the LED and buzzer on the kit were working instead of the LED group I needed to. Testing for blue LED to see if it can light up with red LED codes and circuit.

Activity 2: My Research

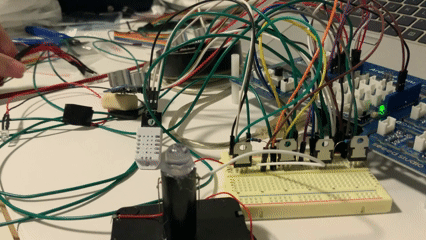

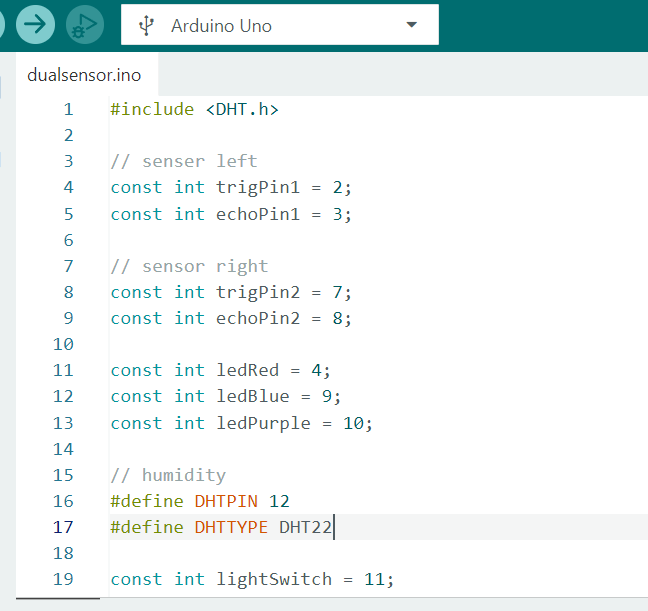

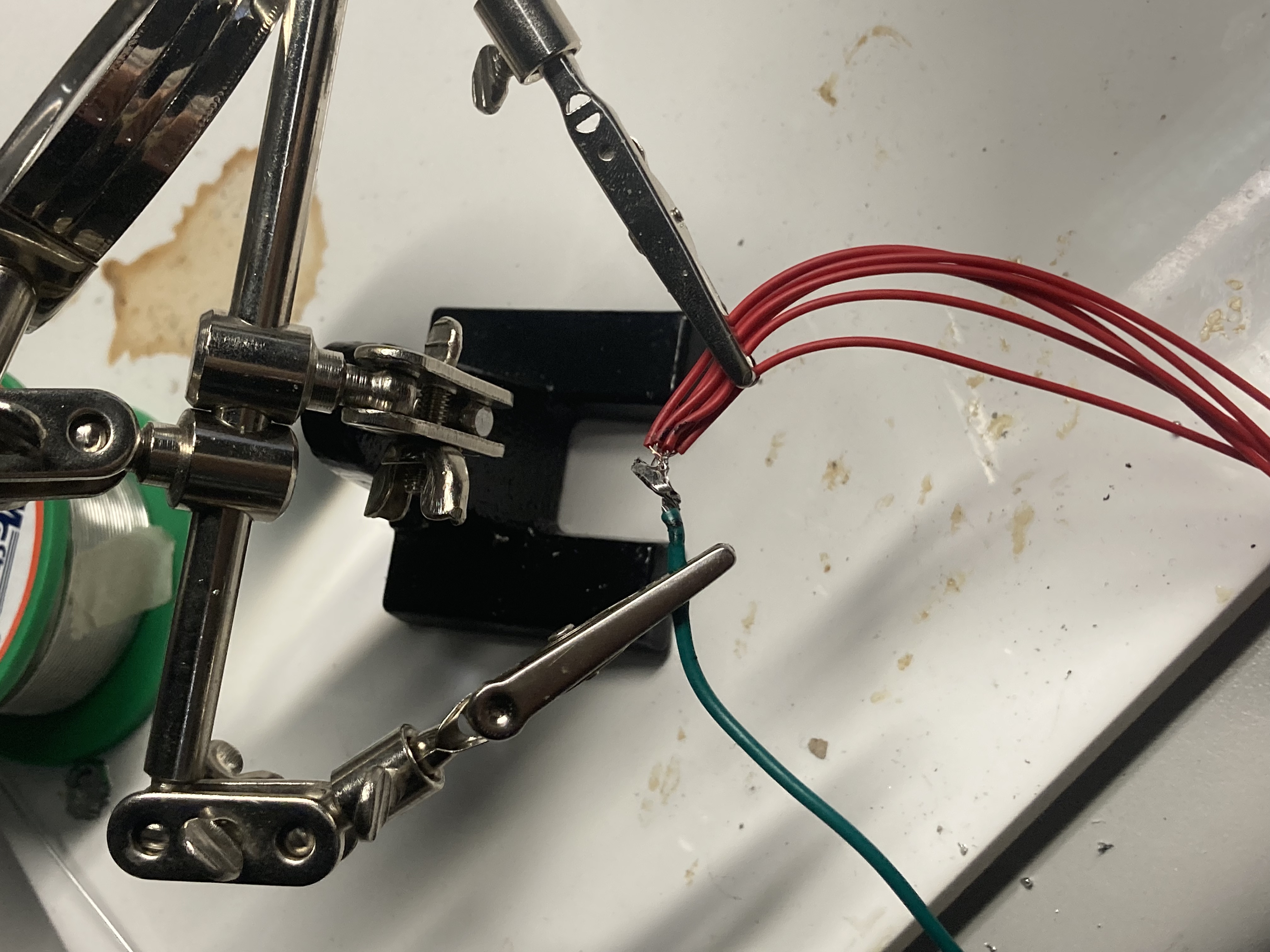

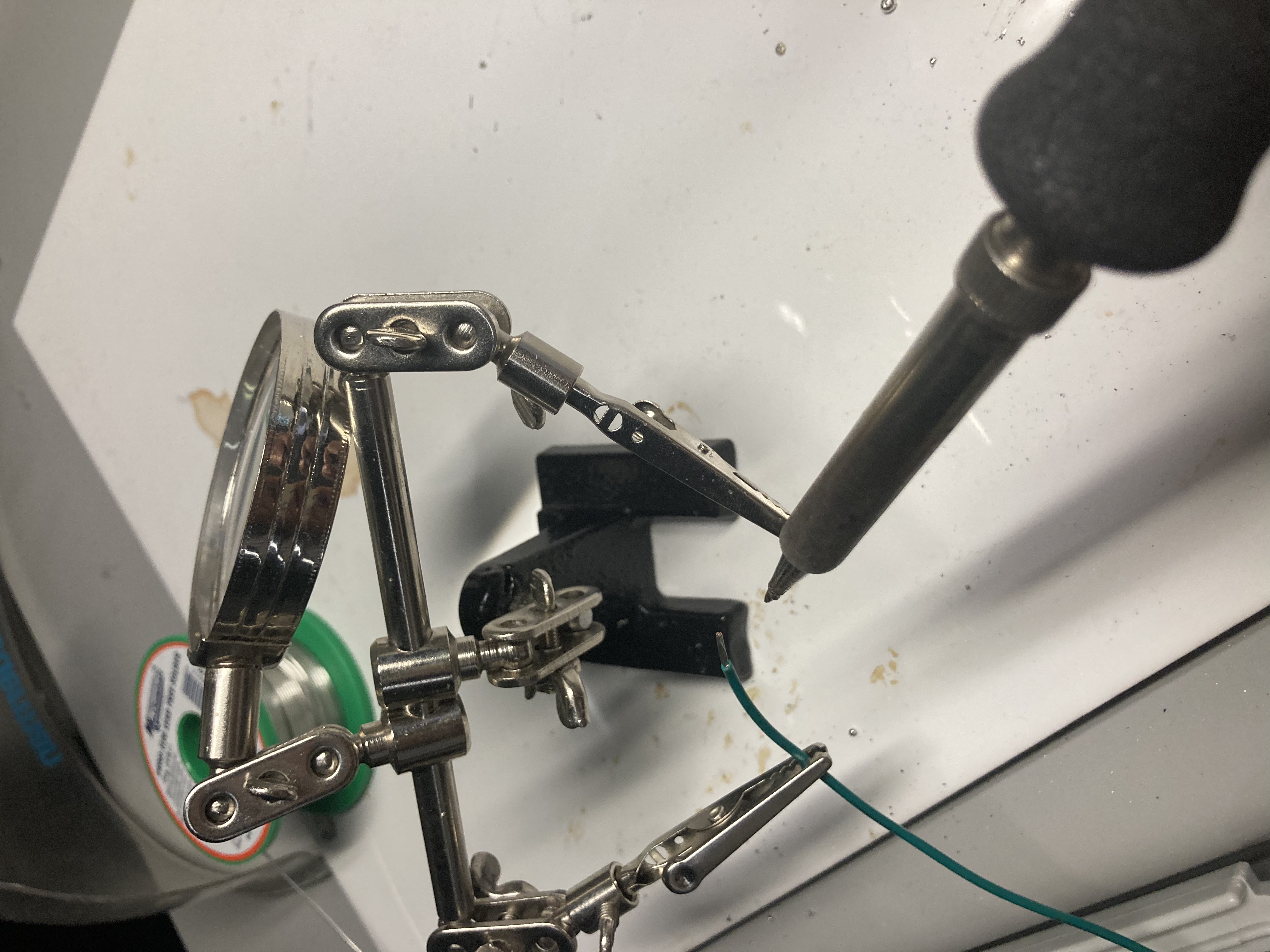

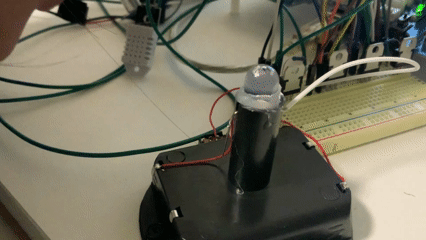

I tested the humidity sensor with new wire connections to make sure it works well. Marge the code of ultrasonic and humidity sensor to make the final dual sensor code. debugged the code to see if both sensors worked. Soldered the separeted copper wires to make them into one single wire. I thought this would fix the problem of poor contact between LED and extension wire. Continued in soldering the wires. Then the poor contact issus was finally fixed.

Additional Research or Workshops

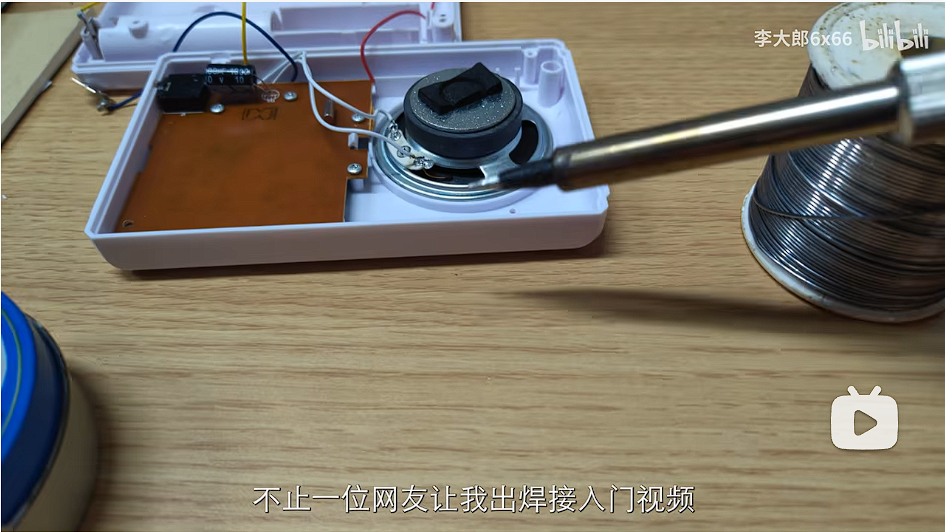

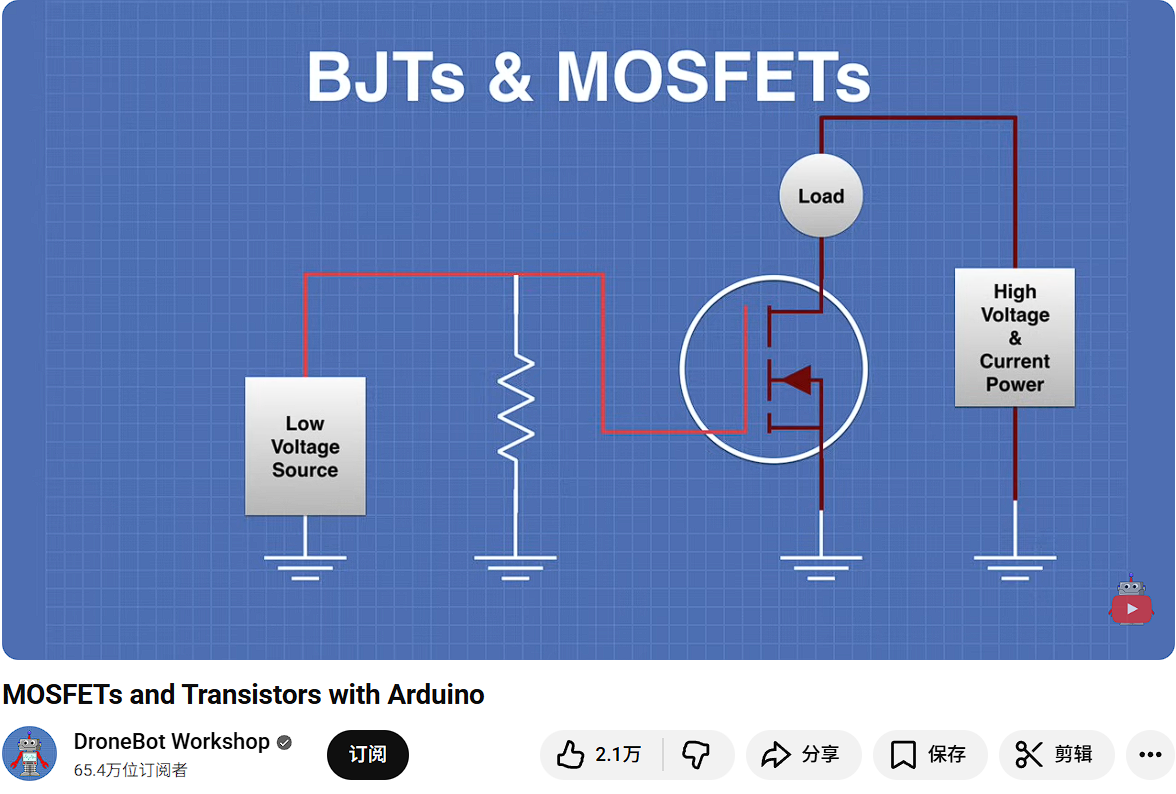

Video of transistor operation and explanations. Video of soldering technique and aware of safety measures in my own language because I don't want to misunderstand any precautions I heard from lecture. https://www.bilibili.com/list/watchlater?oid=396146871&bvid=BV1Vo4y1q71S&spm_id_from=333.934.top_right_bar_window_view_later.content.click Lorem ipsum dolor sit amet, consectetur adipiscing elit Lorem ipsum dolor sit amet, consectetur adipiscing elit Lorem ipsum dolor sit amet, consectetur adipiscing elit

Project 2

Project 3 Final Prototype

The Glowing Flower

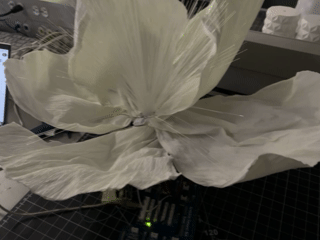

The final design of our Glowing Flower. It can light up different colors with interacted by different direction. Also, blowing on the stigma activates the humidity sensor to illuminate the it.
×
